Highlead Industrial Sewing Machines

Highlead Sewing Machines


Highlead GG0068-1

Zigzag Sewing Machine

high speed with standard & 3 step Zigzag stitching

The Highlead GG0068-1 is a high speed zigzag sewing machine for industrial production use which features a newly designed stitch pattern change over device.

The stitch pattern change over device allows the operator to easily switch between standard zigzag stitching and 3-step zigzag stitching.  In the past you would have had to purchase 2 separate machines (or manually change cams) to get both of these stitch patterns.  Now operators can select: standard zigzag or 3 step zigzag by using a change over lever which is fitted with-in the sewing machine arm.

This high speed Zigzag sewing machine features an automatic lubrication system which ensures the durability required for industrial use.

When sewing with the standard zigzag pattern: a stitch width of up-to 5mm is available. This increases up-to 10mm when sewing with the 3 step zigzag pattern.

Standard & 3 step zigzag sewing machine


Change over lever fitted with-in machine arm


Available for use in many different sections of the clothing & textile industry including:  underwear, bra, swim-wear, sports-wear, towels + other light and medium weight fabrics.



  • High speed lockstitch zigzag
  • Standard & 3 step changeover lever
  • Large hook
  • Up-to 10mm Zigzag width (3 step)
  • Up-to 5mm Zigzag width (standard)
  • Reverse stitch lever
  • Stitch Condenser (dial adjustable)
  • Easy width adjusting levers
  • Automatic oil lubrication


  • Max sewing speed: 4500rpm
  • Zigzag width (3 step) 1-10mm
  • Zigzag width (1 step) 1-5mm
  • Presser foot lift by hand: 5.5mm
  • Presser foot lift by foot: 10mm
  • Needle size: DPx5 #9 to #18

Can also be set to sew with a straight style stitch



  • LED needle light kit
  • Linzbek energy saving servo motor (LB600C series)
  • Linzbek servo needle position motor with speed and acceleration control (LB610C/LB650C series)

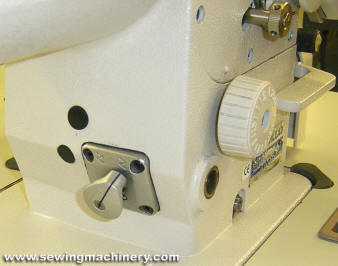

Highlead GG0068-1 zigzag sewing machine


Highlead GG0068-1 high speed industrial Zigzag Sewing Machine

Also available Highlead GG0068-1D model with automatic thread trimmer and electronic needle position servo motor and control panel
Other HIGHLEAD Zigzag models:

HIGHLEAD GG0028-1 Heavy duty Zigzag

HIGHLEAD GG0028-3C 3-Step Zigzag

HIGHLEAD GG0028 Extra Long arm Zigzag

HIGHLEAD GG0328-1 Walking foot Zigzag

HIGHLEAD GG80018 Long Arm Extra heavy

HIGHLEAD GG0068-1 High Speed Zigzag


We only stock & support GENUINE HIGHLEAD machines with manufacturers UK warranty etc.
