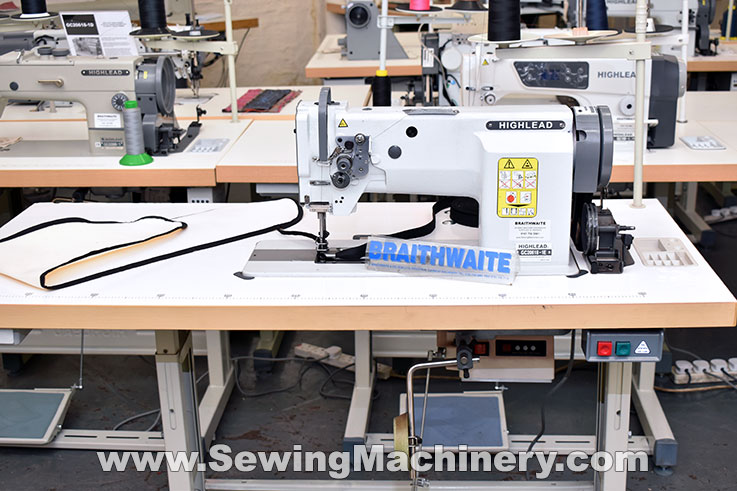

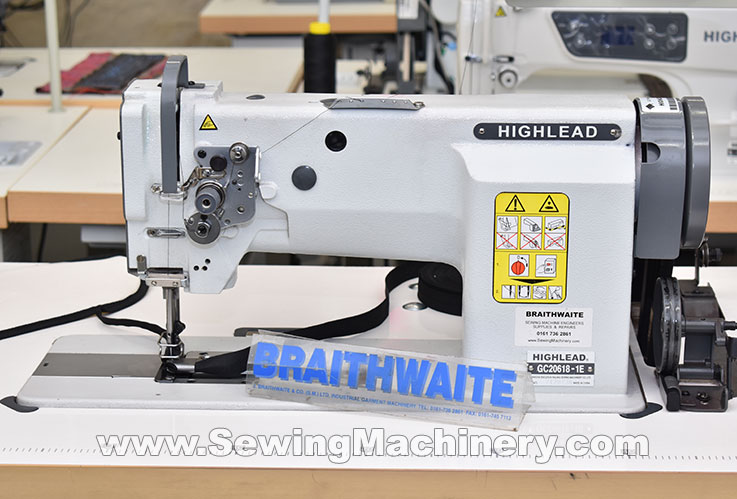

Highlead GC20618-1E-B10

Heavy Duty Synchronized Binding Sewing Machine - Flatbed

(Bottom feed, needle feed & walking foot top feed)

Featuring a heavy duty triple feeding action by way of: bottom feed, needle feed and walking foot top feed.  These three different feeding components combine together to give a positive feed action which is well-matched to heavy/bulky material & fabrics.

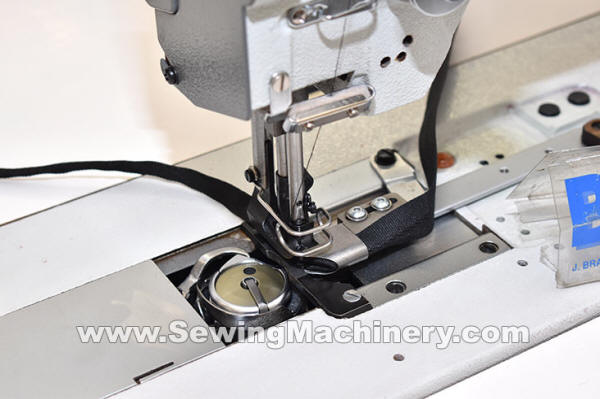

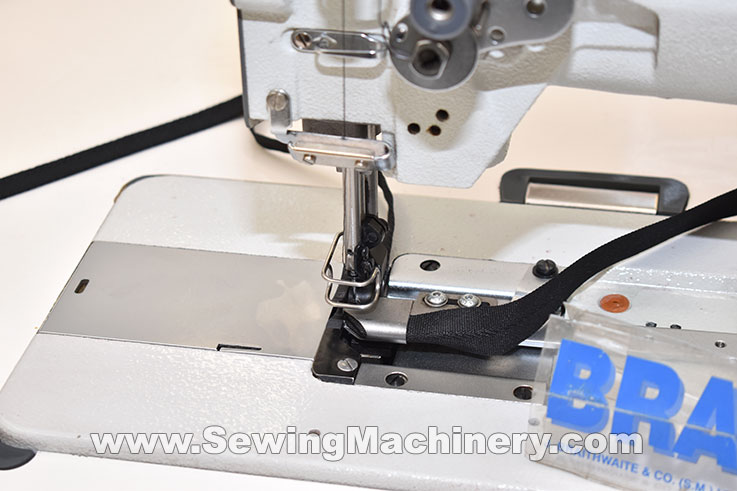

Highlead's industrial synchronized binder system moves an attached folding device in unison with the triple feeding action; to allow easy and precise edge binding with tape.

It is fitted with the higher specification large vertical axis hook assembly & drive transmission: which can perform better when stitching with heavy duty materials and thicker sewing threads.

As a dedicated binding machine the vertical axis hook is fitted on the opposite left hand side (standard non-binding model = right hand-side), with the right bed casting lowered to accommodate the precise flush fitting of the binding assembly.  The left mounted vertical axis hook also allows unobstructed access for quick bobbin change over.

Optional, or custom made, binding attachments are available for use with different binding tapes and material thicknesses.

The GC20618-1E-B10 is a purpose built and dedicated synchronized binding industrial sewing machine ready for demanding industrial applications.

• Quality robust construction
• Automatic head lubrication
• Automatic hook lubrication
• Dedicated binding sewing equipment
• Push button length adjuster
• Up to 10mm Long stitch feature
• Left mounted large vertical axis hook & base
• Unobstructed access for easy bobbin change
• Hook safety clutch
• Quiet balanced head

• Max sewing speed: 2000rpm
• Stitch length: 0-10mm
• Presser foot lift by hand: 8mm
• Presser foot lift by knee: 16mm
• Hook: Large vertical type (on left side)
• Lubrication: Auto Pump driven
• Needle size: 18 - 23#
• Triple feed action (bottom, needle +walking foot)

Cylinder arm Synchronized Binder also available
