Highlead Industrial Sewing Machines
Highlead Sewing Machines

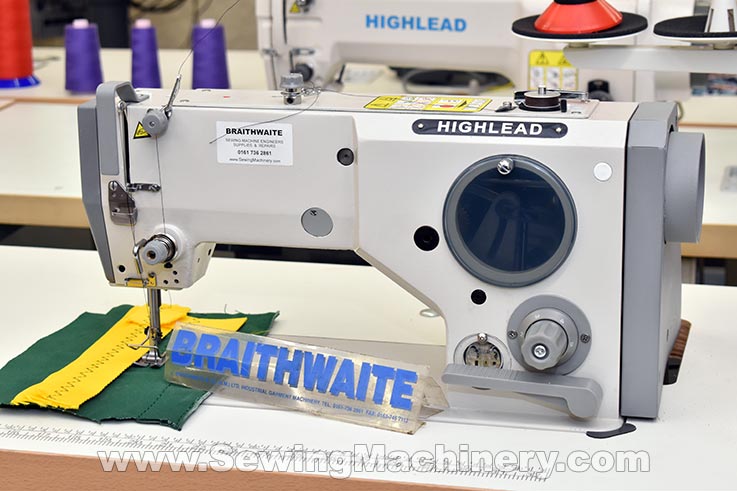

Highlead GG0028-3C (1F)

Zigzag Sewing Machine with Cam Change System

Medium-heavy model

Highlead GG0028-3C 3 step zigzag

The Highlead GG0028-3C(1F) is a cam change Zigzag industrial sewing machine, designed for use with medium & medium-heavy weight materials.

This model incorporates an easy change cam system with a 3 step zigzag pattern cam fitted as standard.

Optional stitch cams are available, which when fitted, allow the machine to sew different patterns including standard zigzag, 2 step, 3 step, 4 step and straight stitch etc.

Its modern design features: a zigzag width of up-to 10mm* and a stitch length of up-to 5mm* combining together to produce a functional zigzag stitch pattern for use on a wide range of applications.

The hook containing the lower bobbin is twice the normal size; resulting in fewer bobbin changes and in combination with the vertical take up lever system, it is of particular use when using thicker than normal sewing threads.

It employs a parallel vertical needle bar motion for stronger striking power and a semi-automatic lubrication system to improve service life.

Highlead GG0028-3C

A wide range of sewing threads can be used, with this model being able to sew with up-to size 20** synthetic thread (or size 30** cotton thread) + V46, V69, V92 & V138** heavy duty threads etc.


3 step Zigzag sewing machine industrial
The Highlead GG0028-3C(1F) is a zigzag machine suited to sewing for example:

Sails, leather goods, bags, canvas, plastic, synthetic rubbers, handbags, sports apparatus, blinds, nets, bandages, straps, Velcro, Neoprene, body supports + other medium & medium-heavy materials.





Features:

  • Medium-heavy weight Zigzag
  • Cam Change System
  • 3 step Zigzag pattern cam included.
  • Large hook and spool
  • Up-to 10mm* large Zigzag width
  • Reverse stitch lever
  • Vertical thread take-up assembly
  • Width adjusting device
  • Semi automatic oil lubrication
  • Built-in bobbin winder
  • Automatic hook lubrication
  • Optional Zigzag cams (standard Zigzag, 2-step, 4 step and straight stitch)
Specification:
  • Max sewing speed: 2200rpm
  • Stitch length: 0-5mm
  • Zigzag width up to: 10mm (3 step cam)
  • Needle bar stroke: 36mm
  • Take up stroke: 82mm
  • Presser foot lift by hand: 7mm
  • Presser foot lift by knee: 12mm
  • Needle: 134-35 size 120
Options:
  • Various Pattern cams
  • Puller Feed system
  • Electronic needle position motor
  • Auto foot lifter assembly

Large sewing machine hook GG0028-1F
Large bobbin fitted to Highlead GG0028-3C(1F)


Highlead GG0028-3C(1F) - Cam Change Zigzag (with 3-step cam)

Other HIGHLEAD Zigzag models:

Highlead Sewing Machines

HIGHLEAD GG0028-1 Heavy duty Zigzag

HIGHLEAD GG0028-3C Cam change Zigzag

HIGHLEAD GG0028-73L Extra Long arm Zigzag

HIGHLEAD GG0328-1 Walking foot Zigzag

HIGHLEAD GG80018 Long Arm Extra heavy

HIGHLEAD GG0068-1 High Speed Zigzag


*subject to cam type fitted
**maximum useable thread size subject to make & type

highlead GG0028 with puller feed device
Highlead Zigzag with optional Puller Feed Device (custom fitted & available at extra cost)

Highlead Zigzag with optional Puller Feed Device (custom fitted & available at extra cost)

Highlead GG0028 1F 3C with puller feed
Highlead Zigzag with optional and customized items (available at extra cost) including:
Puller feed device, electric puller lifter, needle position servo motor, stitch count panel and auto foot lifter.
